Casa /Prodotti/Fan centrifugo del ventilatore/Factory Boiler Power Plant Centrifugal Centrifugal Fan Blower With 220v 380v High Temperature

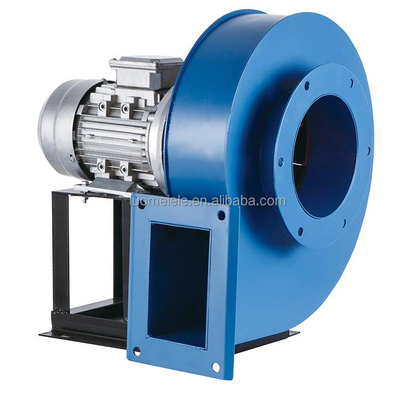

Factory Boiler Power Plant Centrifugal Centrifugal Fan Blower With 220v 380v High Temperature

1 Carton
MOQ
$80.00(1 - 9 Cartons) $70.00(10 - 49 Cartons) $60.00(>=50 Cartons)
prezzo
Factory Boiler Power Plant Centrifugal Centrifugal Fan Blower With 220v 380v High Temperature
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Centrifugal Fan
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Printing Shops, Energy & Mining, Advertising Company
Customized support: OEM
Electric Current Type: AC
Blade Material: Cast Iron
Mounting: FREE STANDING
Model Number: YN5-47-060
Voltage: 220V/380V
After-sales Service Provided: Online support
Pressure: 310Pa
Frequency: 50 Hz
Material: Iron
Motor type: Copper Wire
Temperature resistance: 200 ℃
Rotation: 2800RPM
Color: Blue
Usage: boiler fan
Phase: 1/3 Phase
Weight: 10KG
Certificazione: ce, CCC
Informazioni di base
Certificazione: ce, CCC
Model Number: YN5-47-060
Termini di pagamento e spedizione
Packaging Details: good carton
Descrizione di prodotto

- High temperature resistance, high efficiency, high air volume, low vibration, low noise, laser cuttingof wind shells,

beautiful shape

-- Y2 aluminium alloy die casting material is used in the motor, which greatly reduces weight, achieveslightweight,

convenient istallation and novel shape. The main components of the motor are high temperature resistant materials (high temperaturebe arings. high temperature grease, high temperature insulation materials, etc.).

-- The motor is cooled by connecting the heat insulating connecting seat (with internal cooling vanes) with the wind

housing to ensure the normal operation of the motor at high temperature

-- widely used in heating furnace, hot air stove, numerical control boiler, steam boiler, drying,chemical industry, food,

grain machineryAnd other related industries.

-- Normal operating temperature of fan: 180C-200C

Model Power Voltage Frequency Speed Flow Pressure
YN5-47-060 60W 220V/380V 50HZ 2800r/min 240m3/h 310Pa
YN5-47-090 90W 220V/380V 50HZ 2800r/min 350m3/h 360Pa
YN5-47-120 120W 220V/380V 50HZ 2800r/min 480m3/h 450Pa
YN5-47-180 180W 220V/380V 50HZ 2800r/min 650m3/h 510Pa
YN5-47-250 250W 220V/380V 50HZ 2800r/min 860m3/h 580Pa
YN5-47-370 370W 220V/380V 50HZ 2800r/min 1100m3/h 650Pa
YN5-47-550 550W 220V/380V 50HZ 2800r/min 1450m3/h 680Pa
YN5-47-750 750W 220V/380V 50HZ 2800r/min 1810m3/h 790Pa
YN5-47-1100 1100W 220V/380V 50HZ 2800r/min 2250m3/h 940Pa
YN5-47-1500 1500W 220V/380V 50HZ 2800r/min 2800m3/h 1140Pa
YN5-47-2200 2200W 220V/380V 50HZ 2800r/min 3100m3/h 1280Pa
YN5-47-3000 3000W 380V 50HZ 2800r/min 3800m3/h 1580Pa
