Casa /Prodotti/Fan centrifugo del ventilatore/Factory SANLY 5015 DC 12V 24V Air Cooling Blower Centrifugal Fan

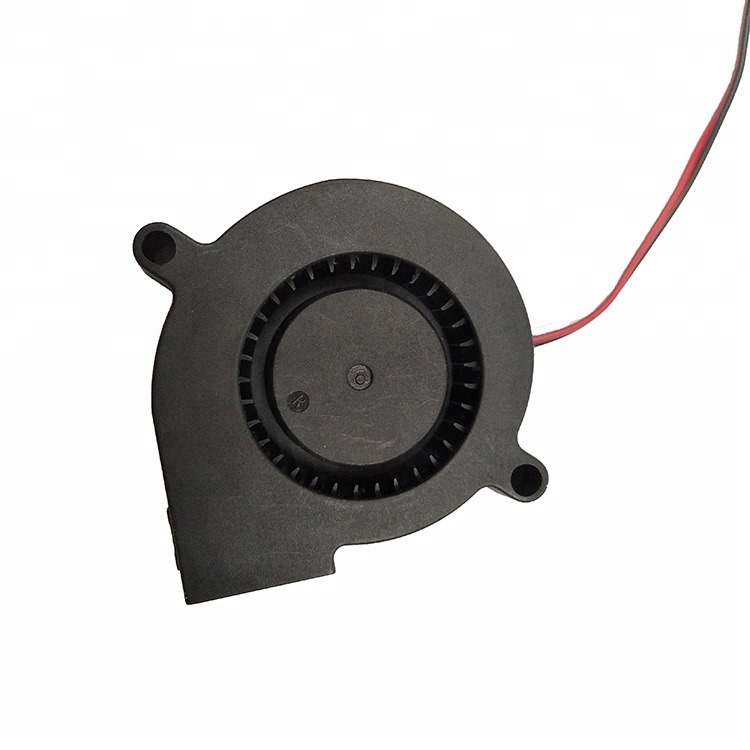

Factory SANLY 5015 DC 12V 24V Air Cooling Blower Centrifugal Fan

1000 Pieces
MOQ
$2.50(1000 - 9999 Pieces) $2.00(10000 - 499999 Pieces) $0.80(>=500000 Pieces)
prezzo
Factory SANLY 5015 DC 12V 24V Air Cooling Blower Centrifugal Fan
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Centrifugal Fan, Centrifugal Blower Fan
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Printing Shops
Customized support: OEM, ODM
Electric Current Type: DC
Blade Material: Plastic
Mounting: Screw fans
Model Number: SF5015
Voltage: 12 V
Warranty: 1 Year
After-sales Service Provided: Online support
Color: Black, Blue
Bearing Type: Sleeve/2-Ball
Lead Wire: 2PIN(+,-)
Life Expectancy: 15000-50000hrs
IP Rating: IP44/IP45
Noise: 30.0dB-A
Weight: 28g
Speed Range: 3000-5000RPM
Option: PWM, FG, RD
Certificazione: ce, RoHS, ISO9001
Informazioni di base
Certificazione: ce, RoHS, ISO9001
Model Number: SF5015
Termini di pagamento e spedizione
Packaging Details: Qty: 400pcs/carton Size: 31.2x27x27CM G.W: 14kg
Supply Ability: 800000 Piece/Pieces per Month Centrifugal Blower Fan
Descrizione di prodotto
DC Blower Fan

Applications

3D Printer, Refrigerator, Freezer, Wine Refrigerator, Air purifier,Toy, Electric Equipment, Notebook, Laptop, Mini-projector, Humidifier, Medical Device, etc.

Model
Rated
Voltage
Operating Voltage Range
Rated
Current
Rated Input Power
Speed
Max
Air Flow
Max Static
Pressure
Noise
VDC
VDC
Amp
Watt
R.P.M
m3/min
/ CFM
mmH2O
/ INH2O
dB-A
SF5015S/BL
12
6to13.5
0.06
0.72
3000
0.06/2.39
7.12/0.33
30.0
SF5015S/BM
12
6to13.5
0.12
1.44
4000
0.08/2.76
9.49/0.38
35.0
SF5015S/BH
12
6to13.5
0.18
2.16
5000
0.11/3.01
11.86/0.43
39.0
SF5015S/BL
24
15to25.5
0.05
1.20
3000
0.06/2.39
7.12/0.33
30.0
SF5015S/BM
24
15to25.5
0.10
2.40
4000
0.08/2.76
9.49/0.38
35.0
SF5015S/BH
24
15to25.5
0.15
3.60
5000
0.11/3.01
11.86/0.43
39.0

1. S/B "S" for Sleeve bearing; "B" for 2 ball bearing

2. SFxxxxS/BL is two models, SFxxxxSL, SFxxxxBL
3. Features: Reverse protection;Overcurrent protection; Auto Re-start
4. Optional functions: PWM/FG/RD
5. OEM: label, voltage, speed, wire length, wire connector, etc.

Our Service

1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. We often give one-year warranty on quality of products, and will give your refund if any quality problems occurs when you receive our items.

Quality Control:

1.Incoming quality control
2.In process quality control
3.QA Inspection
4.100% testing before the packing

FAQ

Certificate: CE, RoHS, ISO9001, etc.

Q1: Are you a factory or trading company ?
A1: We are a factory.

Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.


Q3:How about the lifetime of fan?
A3:

Bearing type
Lifetime
Sleeve Bearing
20000 hours
Hydraulic Sleeve Bearing
30000 hours
Dual Ball Bearing
50000 hours

Q4: What effects the quoted price for the fan?

1 size of the fan, 2 voltage, 3 current,
4 speed, 5 air flow, 6 noise,
7 bearing type, 8 two wire or three wire, 9 cable length,
10 connector type, 11 function, 12 quantity

Other Model

25x25x10mm


30x30x10mm


40x40x10mm

40x40x15mm

40x40x28mm


50x50x10mm


60x60x12mm


60x60x15mm


60x60x25mm


60x60x38mm


80x80x15mm


80x80x25mm


80x80x38mm


92x92x25mm


92x92x38mm


120x120x25 mm


Dia 120x120x38mm


140x140x25mm


180X180X25mm




Round Type


Dia 92x25mm


Dia 130x38mm
